Ancon Dovetail Slot Ties
The anchor shapes of Ancon Channels are outside current European Technical Assessment documents and therefore these products cannot be CE marked. Channel profiles available for casting in are: 21/18, 28/15, 38/17, 30/20, 41/27, 40/25, 49/30 and 54/33. Ancon 30/20 is a high performance channel. Ancon PPS/PPB/PPV/PP21 Movement Tie. Debonding sleeves are used on plain-ended wall ties at vertical movement joints. The tie will restrain the masonry against lateral wind loads but the sleeve will allow the masonry to expand or contract.
Universal Wall Starter System
This system includes all necessary fixings to join a single skin of masonry, 2400mm high, to an existing wall. Each pack includes 2 fixing strips, 5 plugs, 5 washers, 5 screws and 10 wall ties. Suitable for wall widths from 60mm to 250mm, this system has a design resistance of 1.7kN per metre. Wall Ties slide within the fixing strip to course with the bed joints of any masonry unit.
36/8 Wall Extension System
The system can be supplied with either SP36 ties or, where longitudinal movement must be accomodated at the joint, PP36 ties complete with debonding sleeves. The system is available as a kit comprising a length of 36/8 Channel 2320mm long, ten ties and ten plugs and screws.

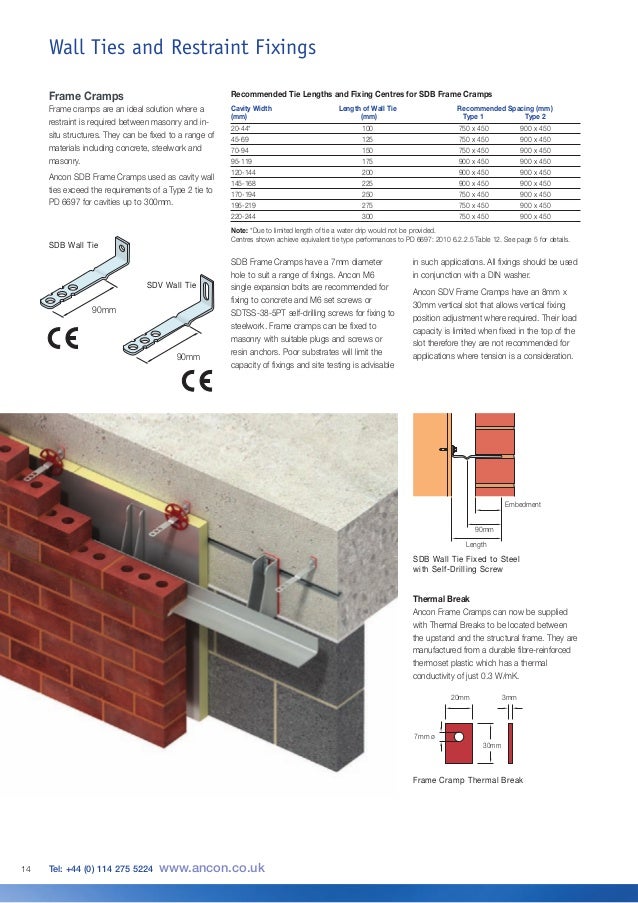

Wall Ties & Restraint Fixings (PDF, 6.97 MB)
NBS Plug-in for Autodesk® Revit® v3.8 update is available. Learn more
Select regional version:
The object content is configured for use in UK, but it may also be suitable for use in other locations.
2D Detail
Channel and tie system for connecting masonry cladding to steel stud framing through insulation board.
Features:
- Manufactured from corrosion-resistant Austenitic stainless steel.
- Channel is available in 2700 mm and 3000 mm lengths.
- Pre-punched holes are positioned at close centres to ensure a fixing position is located near an end, even when the channel is cut on site.
- Self-drilling screws fix through the channel and rigid board into the steel frame
- SD25 ties can be positioned at any point along the channel and are built into the masonry bed joints
- Tie lengths from 100 mm to 300 mm.
- CE’ marked to BS EN 845-1 – see literature or CE Declaration for performance values/tie spacing.
2D plan detail for indicating masonry wall tie requirements.
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
| AECOsim | - | 1.0 | - |
| ARCHICAD | - | 1.0 | - |
| Revit | 2016 + | 4 | 2.0 |
| Vectorworks | - | 1.0 | - |
- More information
- More BIM objects
- What's Changed?
More information
NBS specification data
Case studies and technical literature
More BIM objects
What's Changed?
System.Data.Entity.DynamicProxies.WhatsChanged_A83DF4F687751E1E2672B9C760C4BBA8A30C5F8438919E335528C906849FBB36 |
Minor object standardisation. |
Minor object standardisation. |
Object upgraded to NBS BIM Object Standard v2.0. |
Ancon Dovetail Slot Ties Set
Changes to reflect updates to the NBS BIM Object Standard v1.3
Objects have also been updated to Revit 2015 |
Ancon Dovetail Slot Ties Fasteners
To embed this BIM object onto your website, simply copy and paste the HTML code below.
Technical help
Contact a technical consultant at Ancon to find out more about Ancon 25/14 Channel & SD25 Tie - 2D Detail.
